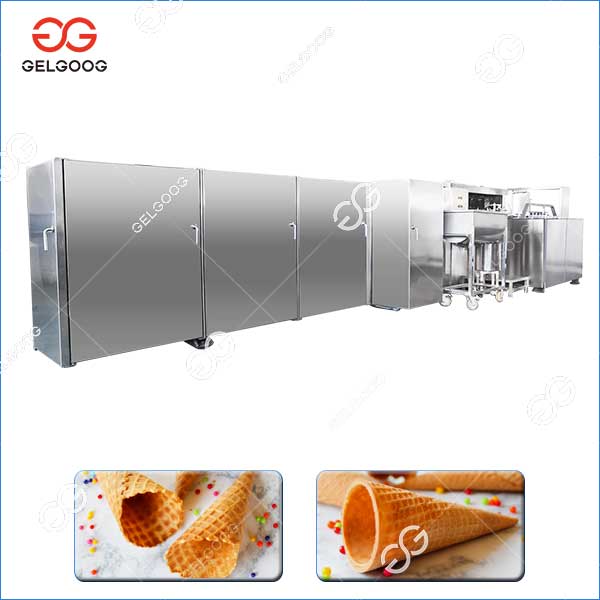

Kev lag luam waffle cone ua tshuab yog tsav los ntawm 3phase fais fab thiab lub qhov cub ci yog cua sov nrog roj (nature gas los yog kua roj). Lub peev xwm ntau lawm yog siab heev, mus txog 4000-7000 daim ib teev.

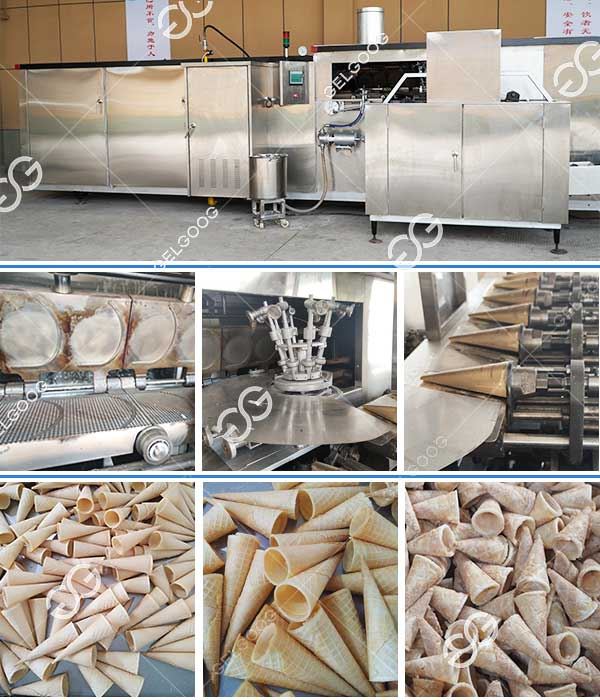

Kev tsim cov txheej txheem ntawm Waffle Cones:

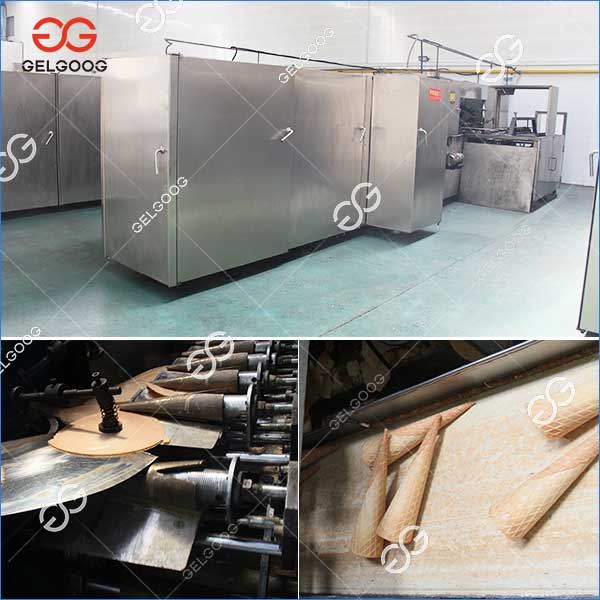

Kev tsim khoom ntawm tag nrho lub khob khov nab kuab yog qhov yooj yim, thiab nws yog automated los ntawm batter filling, ntawv ci, dov, cone forming, demoulding, khoom conveying, stacking, thiab suav.
Lub tshuab waffle cone txiag no tuaj yeem tsim cov duab sib txawv ntawm cov ice cream cones, tsuas yog qhia peb koj qhov yuav tsum tau ua, peb tuaj yeem kho raws li koj xav tau. Piv nrog rau lwm hom ice cream cone tshuab, lub tshuab no raug nqi roj tsawg. Qhov loj thiab ntev ntawm lub khob hliav qab tuaj yeem hloov kho, muaj peev xwm ntau lawm, tsis tshua muaj peev txheej, cov txiaj ntsig siab.
Qauv:Cov khoom seem ntawm lub tshuab tau nruab rau ntawm cov qauv steel muaj zog. Lub qhov rooj yog ob npaug rau cua sov insu-lation. Tag nrho cov panels yog ua los ntawm stainless hlau.
Cov cuab yeej ua haujlwm:Qhov no waffle ice cream cone tshuab yog rotating tsis tu ncua thiab txiav. Qhov ceev tuaj yeem hloov kho raws li qhov xav tau. Lub tshuab yog tsav los ntawm ib lub cev muaj zog nrog traction ncaj qha.
Pwm:Cov phaj ci ci yog ua los ntawm cov khoom siv hlau cam khwb cia zoo.
Batter Pump:Nws tso cov batter txiav los ntawm lub batter tank thiab tshuaj tsuag rau ntawm daim phiaj ci rau ci. Lub batter kom muaj nuj nqis tuaj yeem hloov kho kom cov khoom sib txawv.
Gas qhov system:Nws yog cua sov nrog roj (nature gas los yog kua roj). Tom qab nias lub ignition khawm, burner yuav nyob rau hauv hluav taws kub, qhov hluav taws kub yuav kho tau raws li qhov yuav tsum tau.
Kev ua haujlwm vaj huam sib luag:Cov khoom siv ci tau teeb tsa, kho thiab tswj los ntawm lub khawm yooj yim ua haujlwm lossis hloov kho PLC maub los.
Qauv | GGDCL-55 |
Tsav lub cev muaj zog | 3KW, 380V 50Hz 3 theem |
Kev siv roj | 200 cube / 24 teev |
Tsim muaj peev xwm | 4500-5000pcs/h |
Dimension | 9*1.9*1.85m |
Tag nrho qhov hnyav | 5 100kg |
